EASY JTAG PLUS BOX BLACK EDITION

Z3x Easy Jtag Plus Box – Full Version With eMMC Socket, which boasts some MAJOR hardware improvements and Features including One click device repair, Boot repair, Data recovery, eMMC firmware repair, Partition management, eMMC service operations, SPI memory programming.

This Upgraded PLUS version features ultra-fast data transfer, has the possibility of increasing functionality in the future: hardware of the new box is ready to support new protocols like UFS* and NAND*.

Box Features :-

One click device repair
Boot repair
Data recovery
eMMC firmware repair
Partition management
eMMC service operations
SPI memory programming

Socket Features :-

Combining the top quality materials with the best engineering and elegantly designed hardware for the powerful eMMC Socket.
Made from the high-quality materials
Over 10K cycles of lifetime performance in your service centre
Wide range of eMMC IC supported by BGA153/169, BGA162/186, BGA221, BGA529
High-speed up to 30 MB per second over 8-bit bus.
EMI resistant design, low noise components
Integrated power logic. The additional power source is no more need
Surge protection – smart fuse driven (0.5A threshold)

Software Features :-

DUMP AND PINOUTS DATABASE
Free access to large dump and pinouts database and constantly updated software tools

EASY JTAG TOOL
The main application allowing you to use most of the product features. It’s the most powerful tool of all

EASY JTAG PLUS TOOL
Lightweight software, made especially for mobile phones repair, eMMC memory chips replacement and user data recovery

EASY JTAG SPI FLASHER
Identifying, reading, writing, verifying and erasing flash chips. It is designed to flash BIOS images on mainboards, routers, e.t.c.

EASY JTAG SINGLE PACKAGE REPAIR
Create user customized repair packages. This is partition layout, pinout, eMMC pre-config and instructions

EASY JTAG API
Access to most useful box functionality to create your own decisions

Main benefits of new Z3x Easy Jtag Plus Box :-

Updated CPU AT SAM3X8E vs LPC1768 in the old box.
Updated FPGA SPARTAN6 vs SPARTAN3 in the old box
Updated Power Logic – Full Digital PWM with ADC control.
MicroUSB Connector if additional power required.
VCC and VCCQ overload protection.
Updated host interface: USB 2.0 Device/Mini Host: 480 Mbps
Integrated ISP engine: Z3X High Power Pro Engine
ISP Support 1 and 4-bit connection now **
Added eMMC 8-bit high speed interface up to 48Mhz
Integrated NAND engine: NFC with 4 Kbyte RAM buffer and ECC
Integrated M-PHY interface.
Integrated SPI/I2C engine: up to 65 MHz for HSMCI and SPI clock lines
Integrated Self Test Core that exclude 90% faults in production.
Integrated CCID Card Reader for Z3X Software Use

What you get with new hardware :-

Box to Host PC speed increase up to 35MB/sec
JTAG Interface speed increase 20%
eMMC ISP Speed increase up to 4MB/sec
eMMC 8 Bit Speed up to 26MB/sec
Compatibility with 99.9 host PC systems and OSes
Compatibility with old Easy JTAG G1 ISP adapters ( 1bit )
Adapter-less ISP ( all stuff inside the box )
Compatibility with all market popular eMMC sockets ( 8 bit )

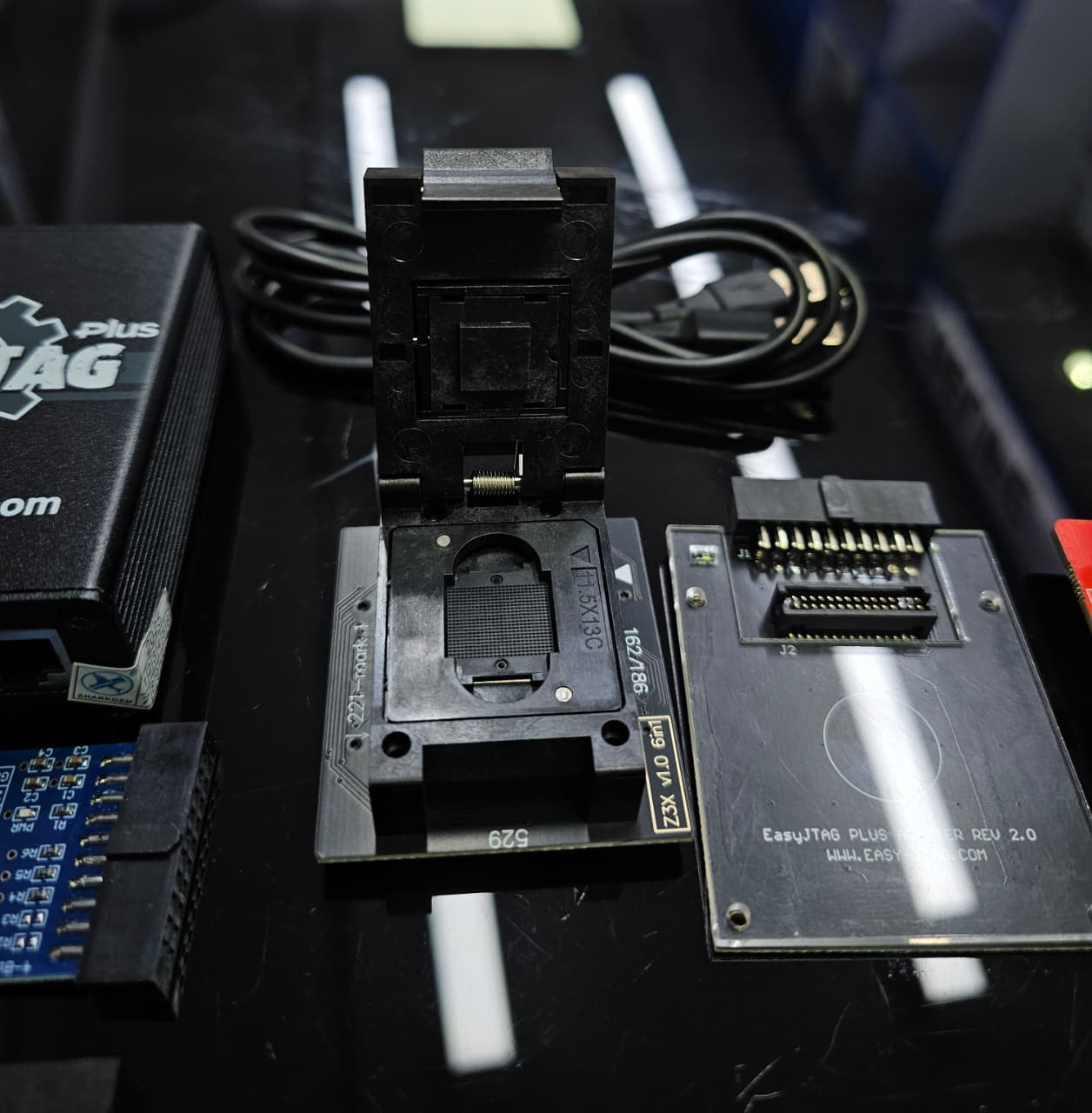

IC Friend Emmc 13in1 Features :-

13 in 1 EMMC Tool BGA Socket Support for BGA 529 168 100 136 254 221 168 153 186 162
Can disassemble, clear, change pin at any time, can use for a long time, can work all box to read/write full flash
Timesaving but easy to operate, Stable and efficient
Intelligent: just read it, operate the programming, reading the chip ROM1 USERDATA with just a key.
Speed: eMMC which read-write speed could be 33MB per second. Its speed is related to the eMMC version.
Simple: it is no need to choose the font type. The interface is simple and easy to use. which support all the chip package of eMMC
Reliable: special machine design of the third generation eMMC, special power supply, independent overcurrent protection
Z3x Easy JTAG Plus Box Content :-

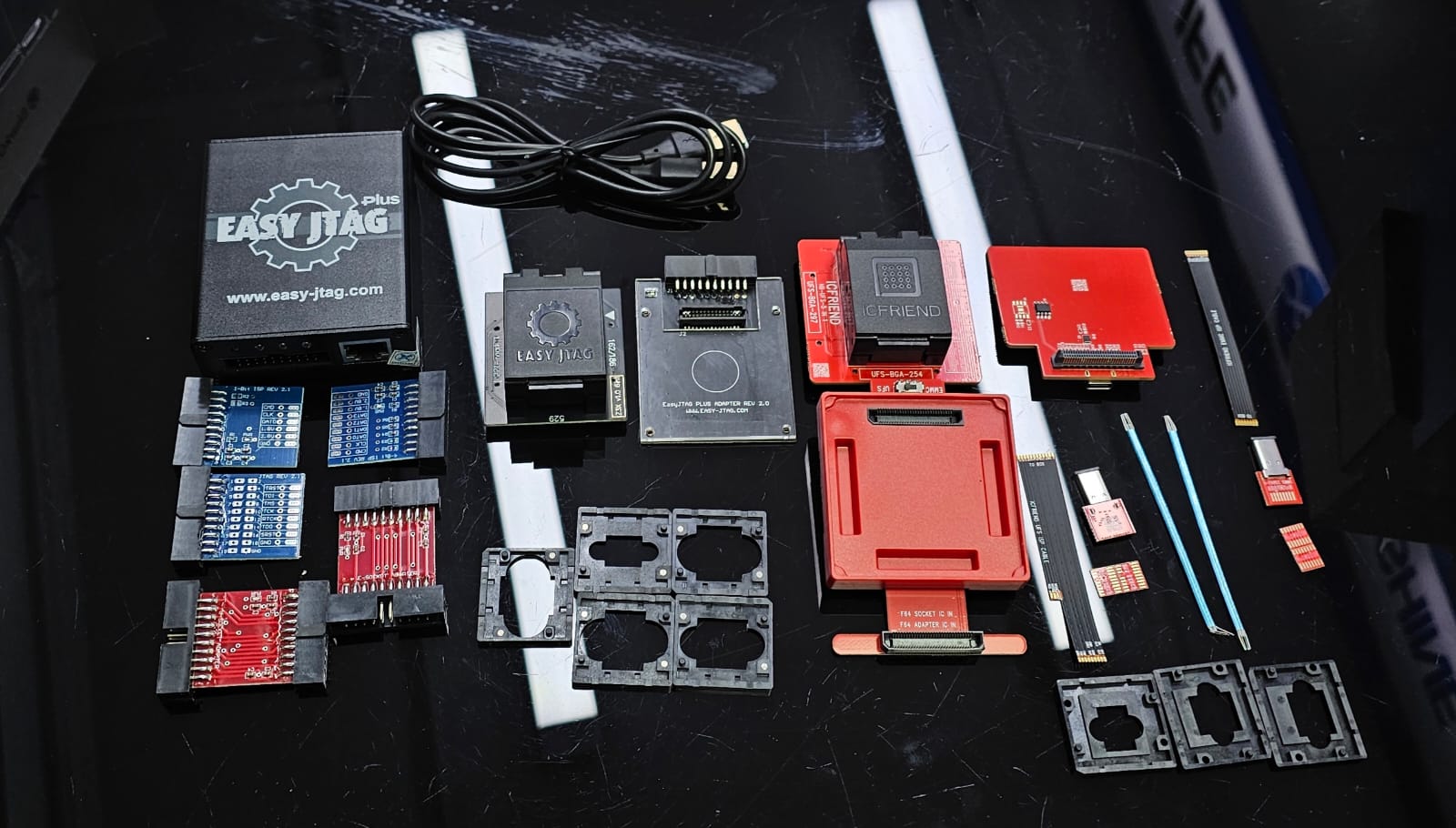

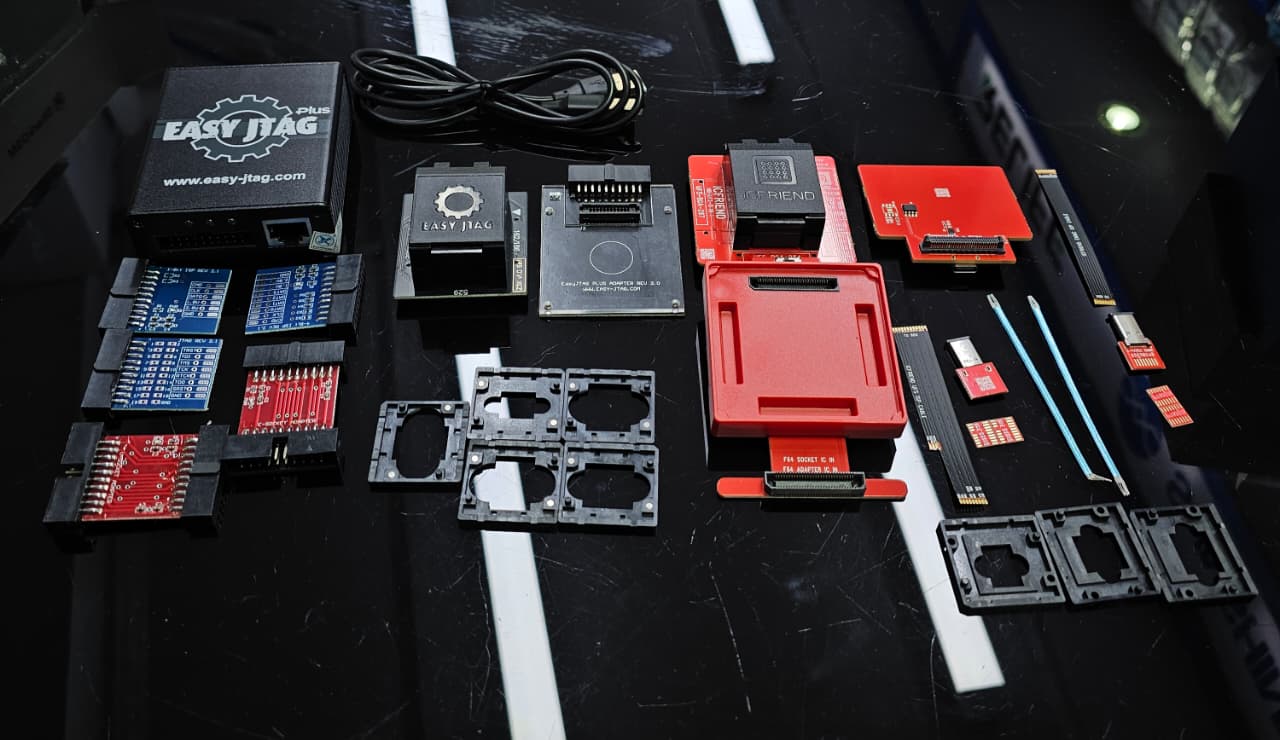

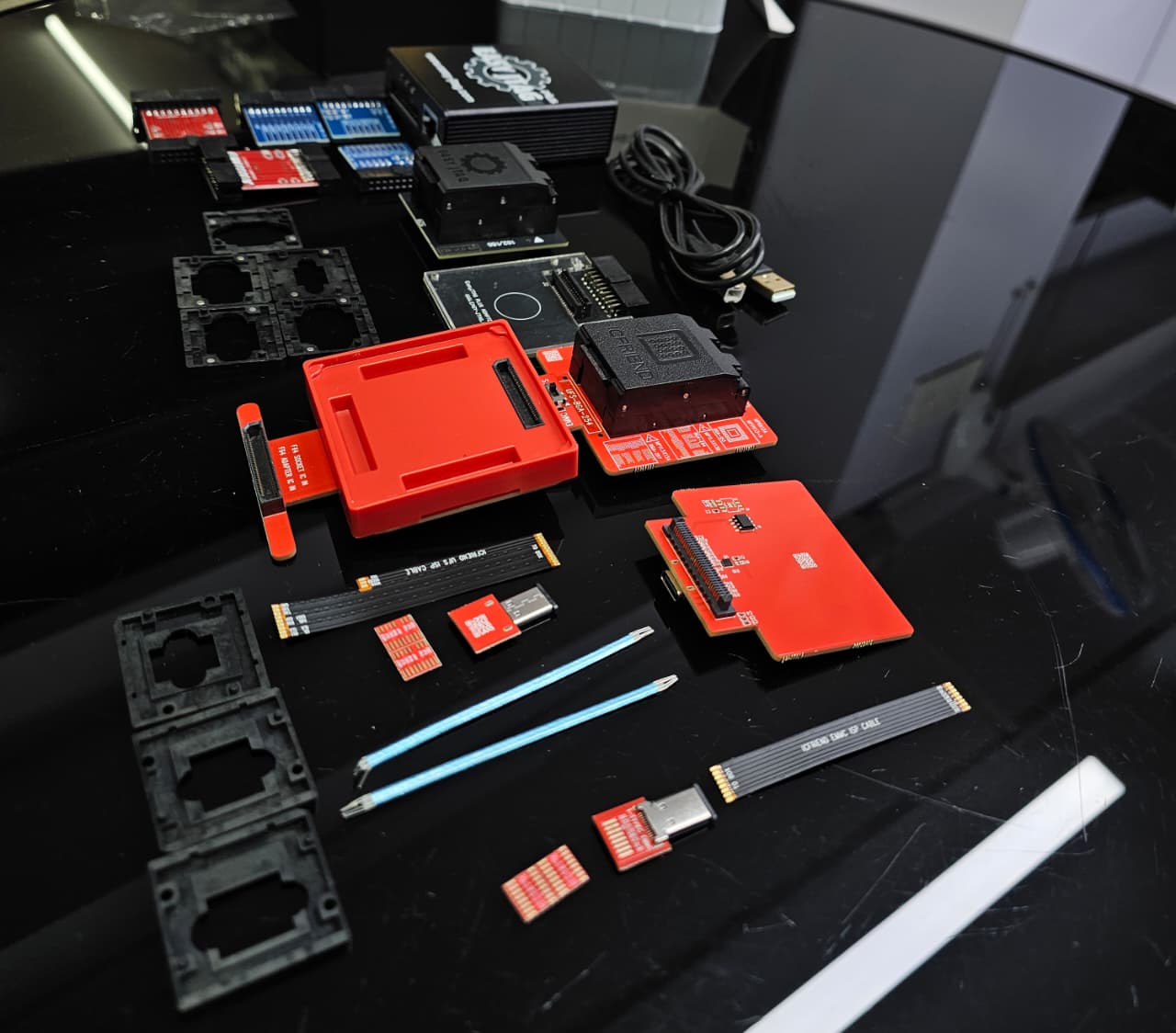

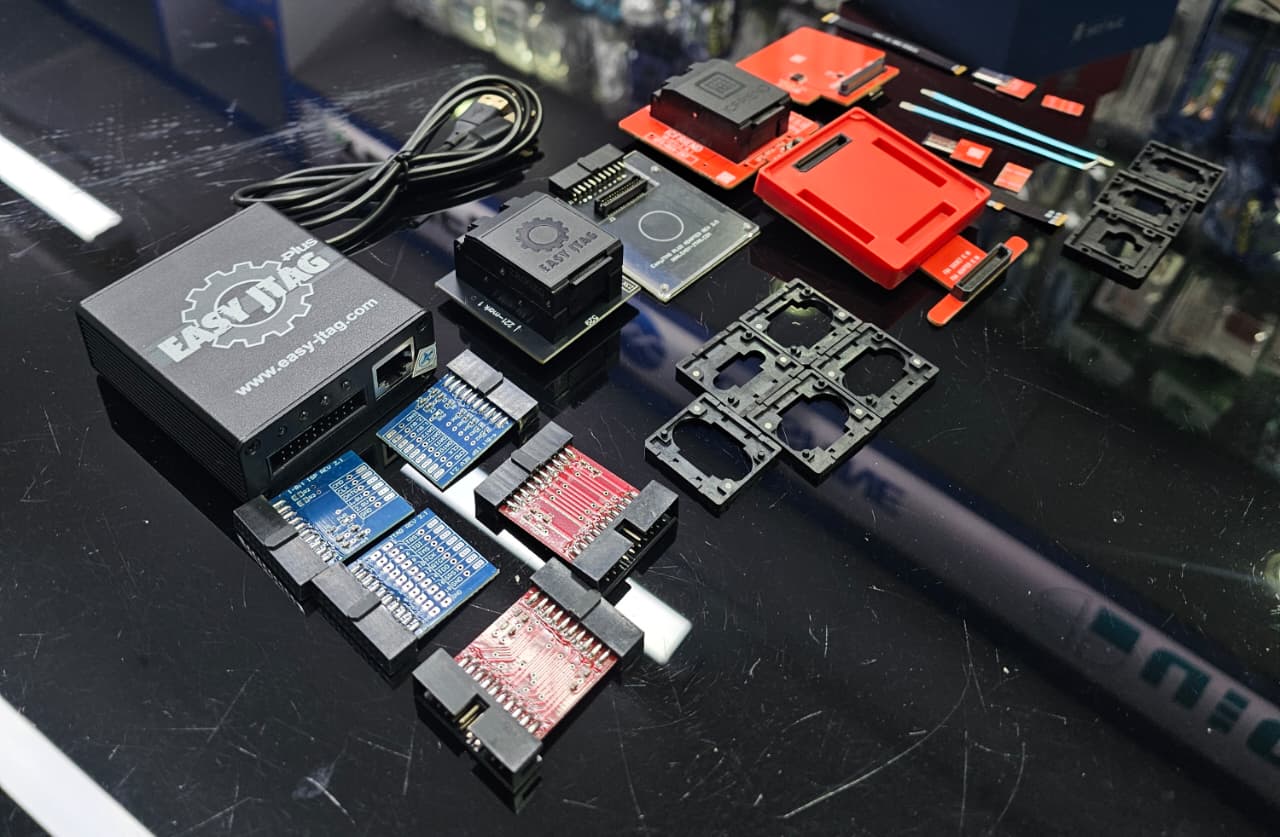

1x Easy JTAG Plus Box Main Interface Hardware V2.1

Z3X Smart Card with Easy JTAG Plus Activation
3x ISP Adapter

Jtag Rev 2.1
1-Bit ISP Rev 2.1
4-Bit ISP Rev 2.1
1x USB A to B Cable

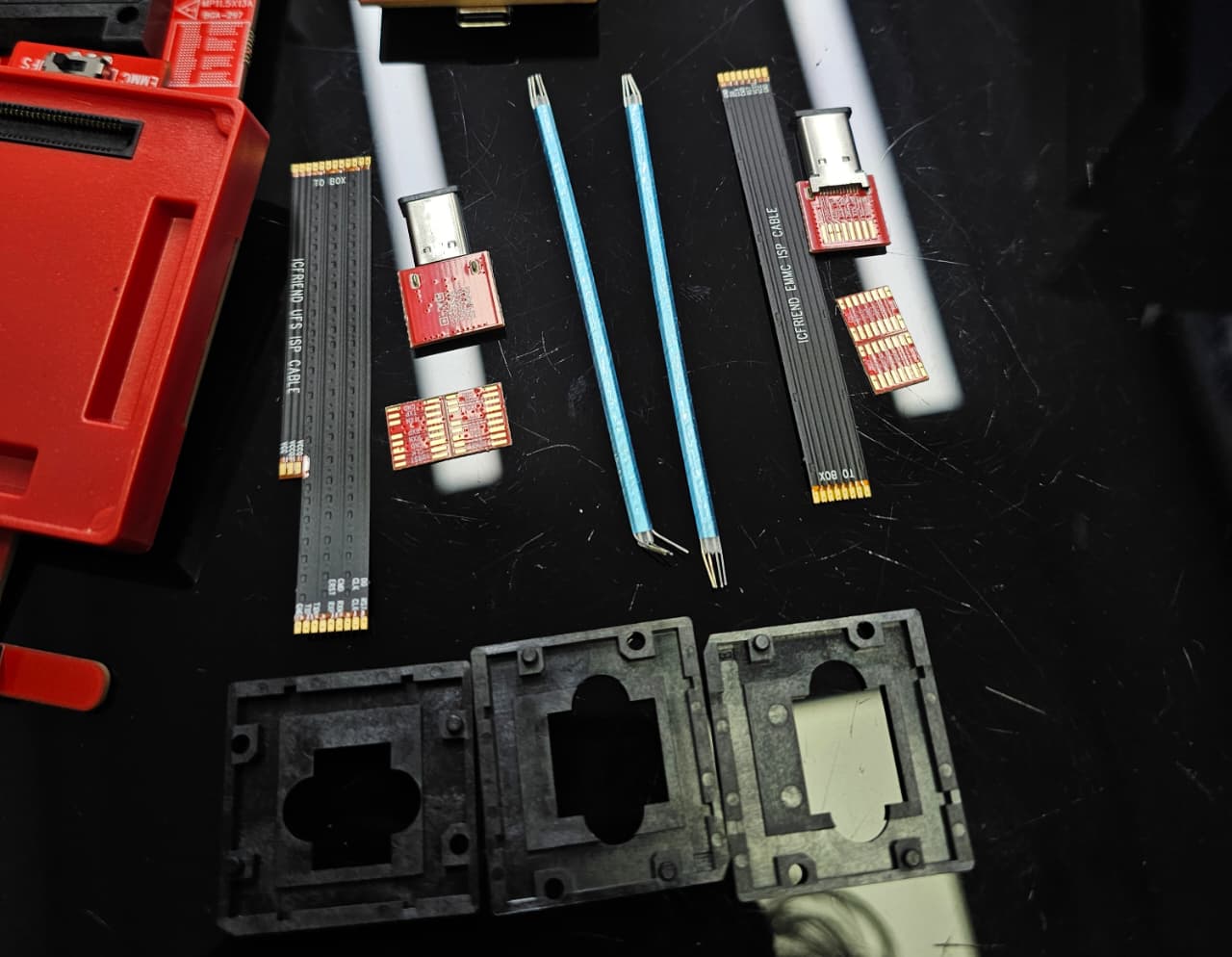

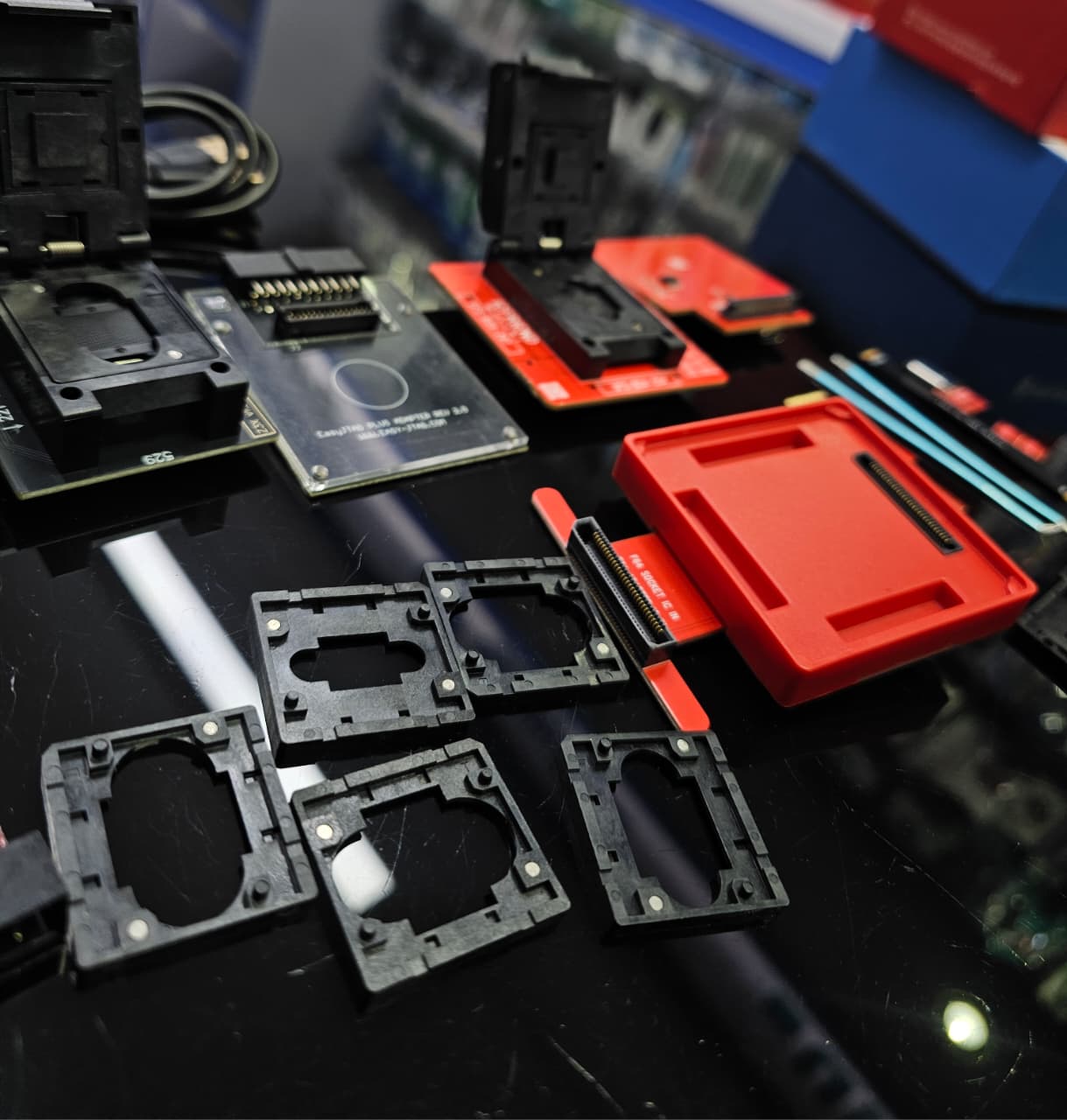

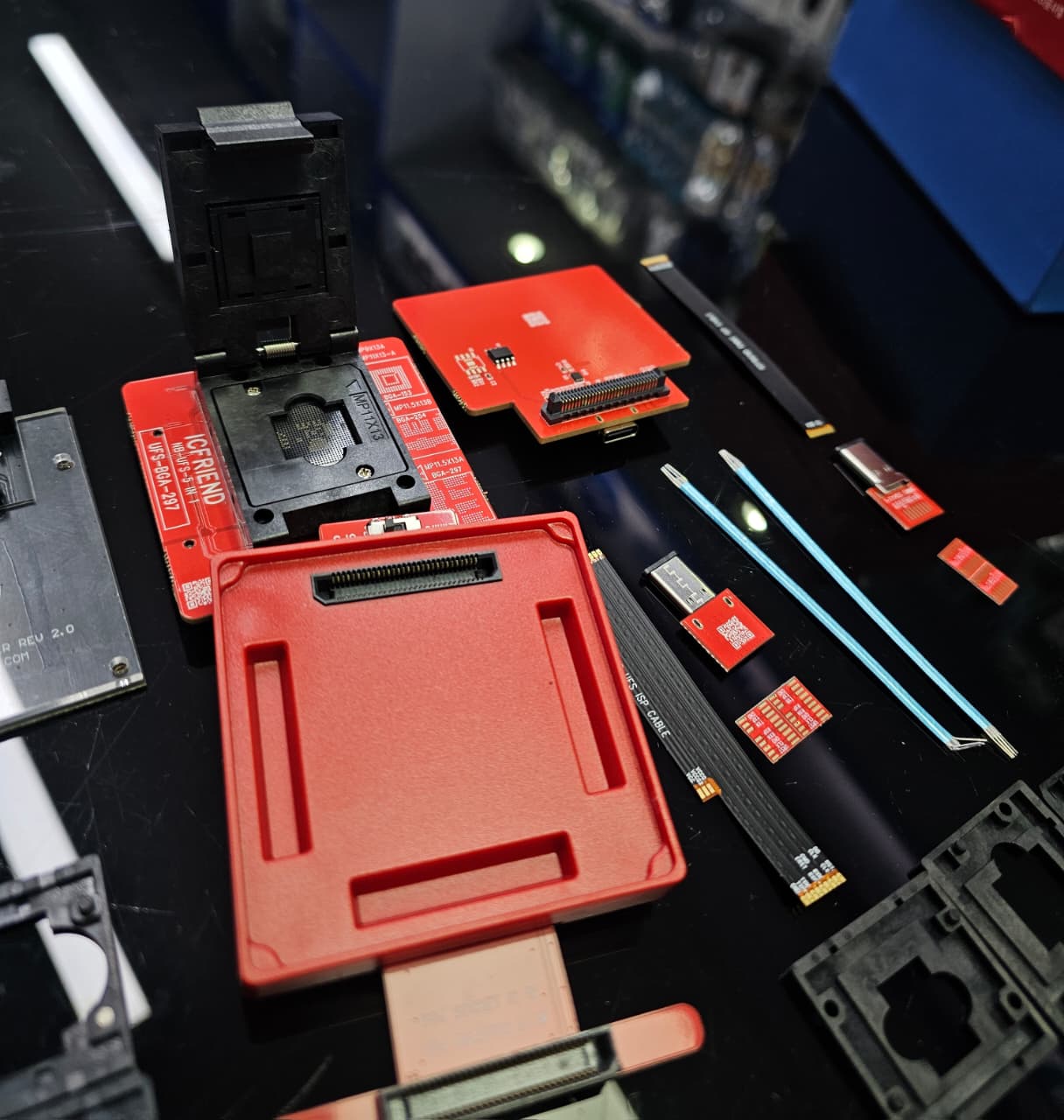

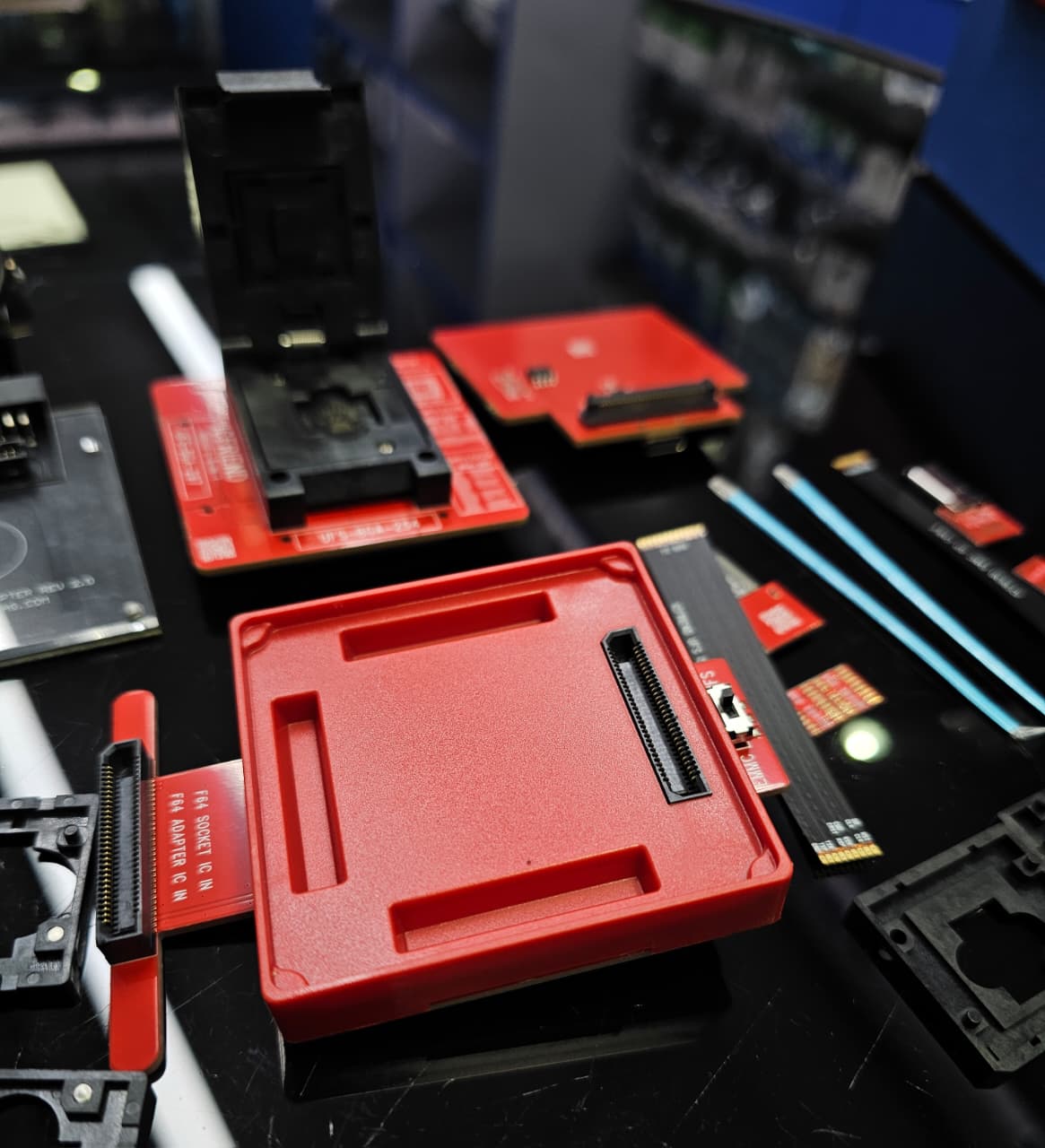

The new ICFriend 4-in-1 Adapter for Easy Jtag Plus Box will enable the user to work with newer UFS chipsets, and let you read/write data, etc. Support UFS-BGA-153 and UFS-BGA-153 (UFS 4.0) / uMCP-BGA-254 / uMCP-BGA-297, need use with Easy Jtag Plus Box

Supported Chipsets:-
– UFS BGA153
– UFS BGA254
– UFS BGA297
– UFS BGA153 (UFS 4.0)
